The bridge cutting machine is used for precise cutting of finished slabs into required dimensions. With a rigid bridge structure and stable cutting control, the machine ensures accurate cutting performance while maintaining slab integrity and edge quality.

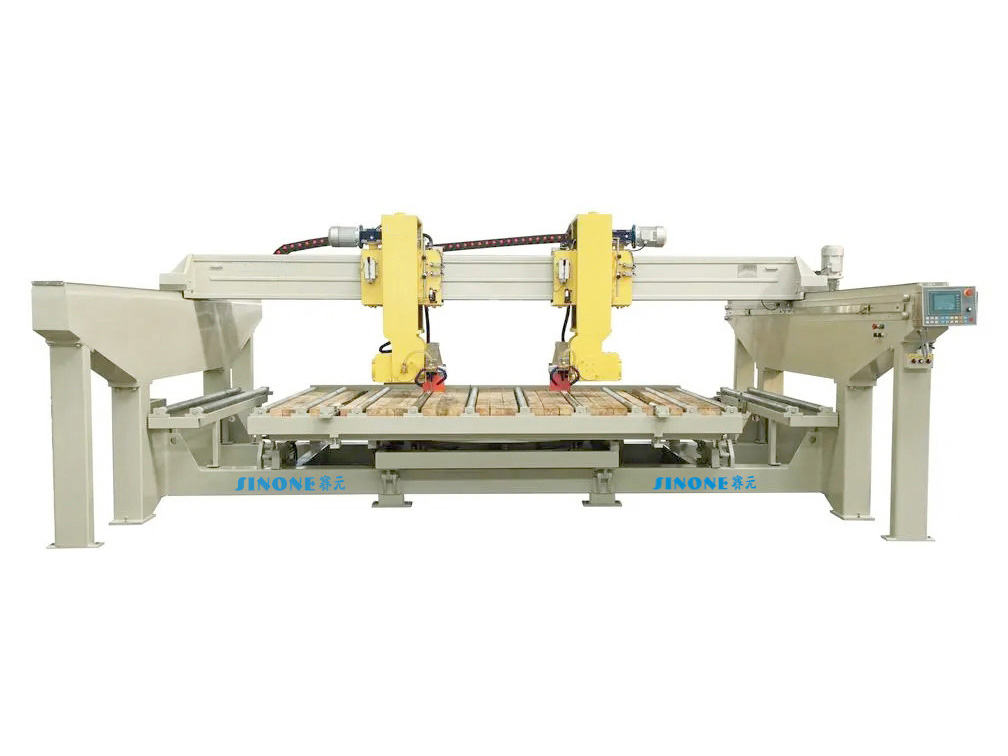

The bridge cutting machine consists of bridge frame, cutting spindle, diamond blade, guide rails, drive motor, water cooling system, and control system

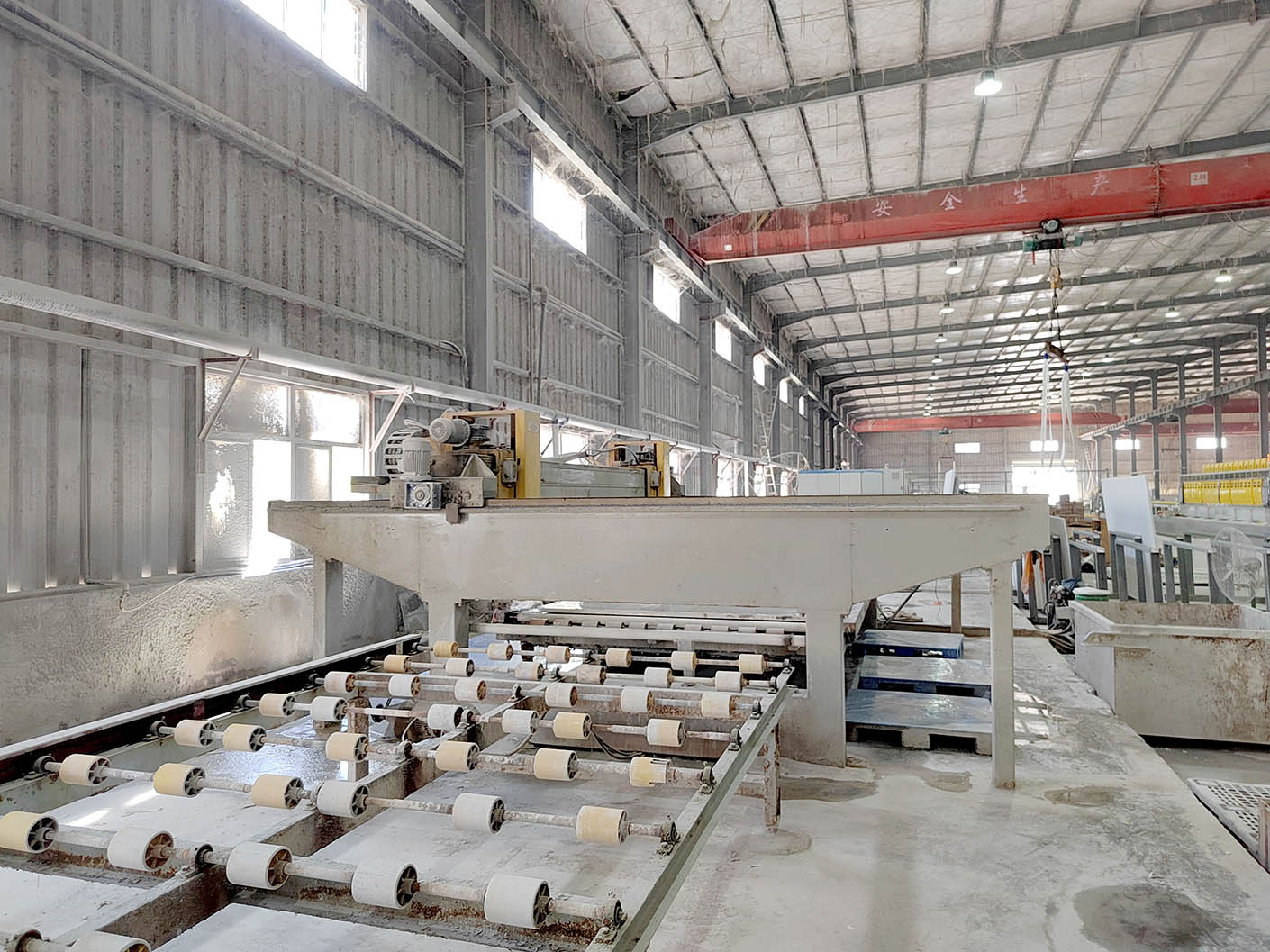

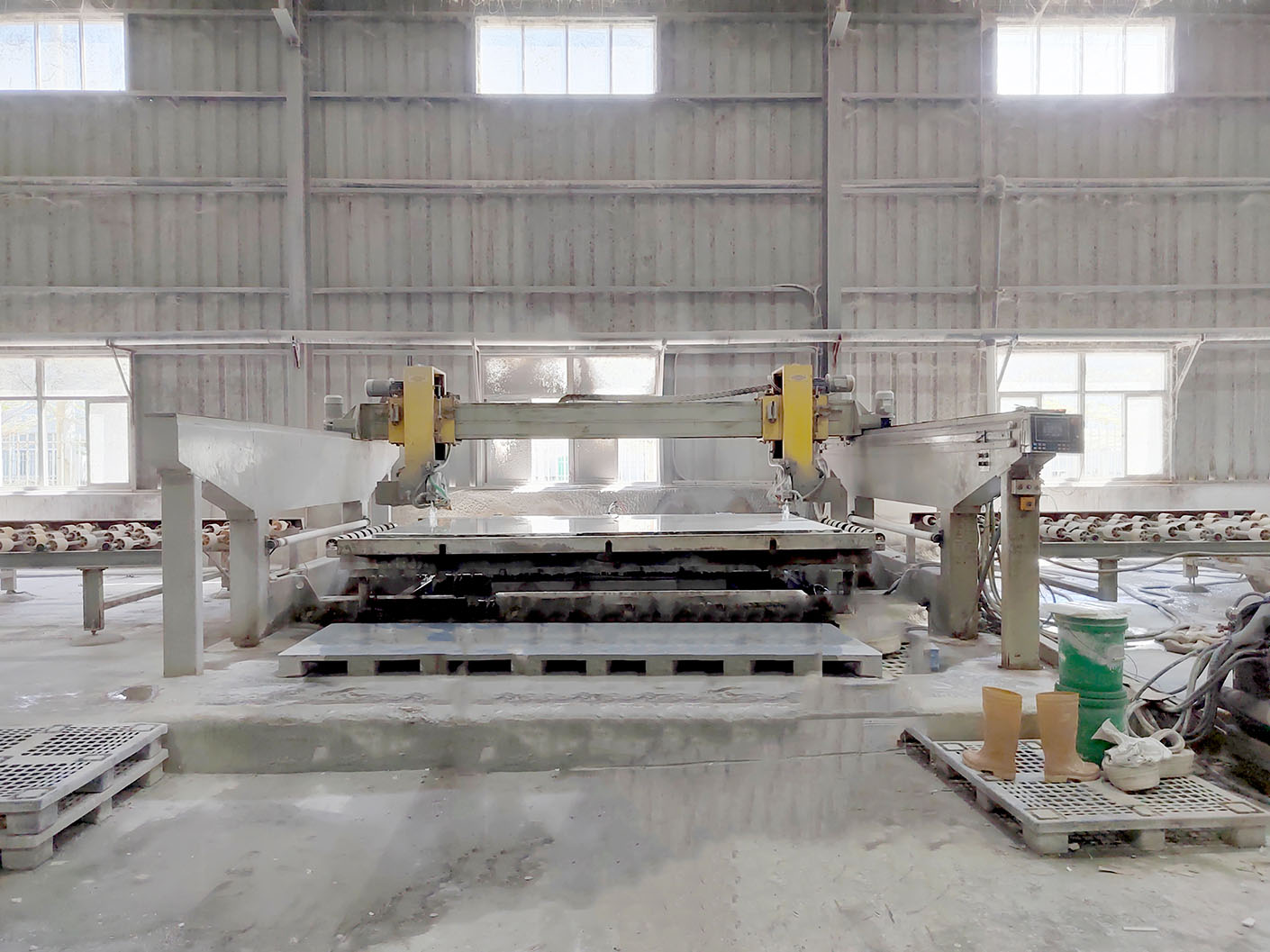

Slabs are positioned on the cutting table. The bridge-mounted cutting head moves along programmed paths to perform straight or angled cuts. Water cooling is applied during cutting to reduce blade wear and improve cutting accuracy.
Bridge Cutting Machine |
|
Model | SYCR-2050 |
Work Area(mm) | Width:800～2100 mm Thickness:1000～3500 mm |
Water Consumption | 30 L/min |
Size（mm） | 5700×5100×2500 |
Power（kW） | 38.2 |
Weight（kg） | 4500 |
