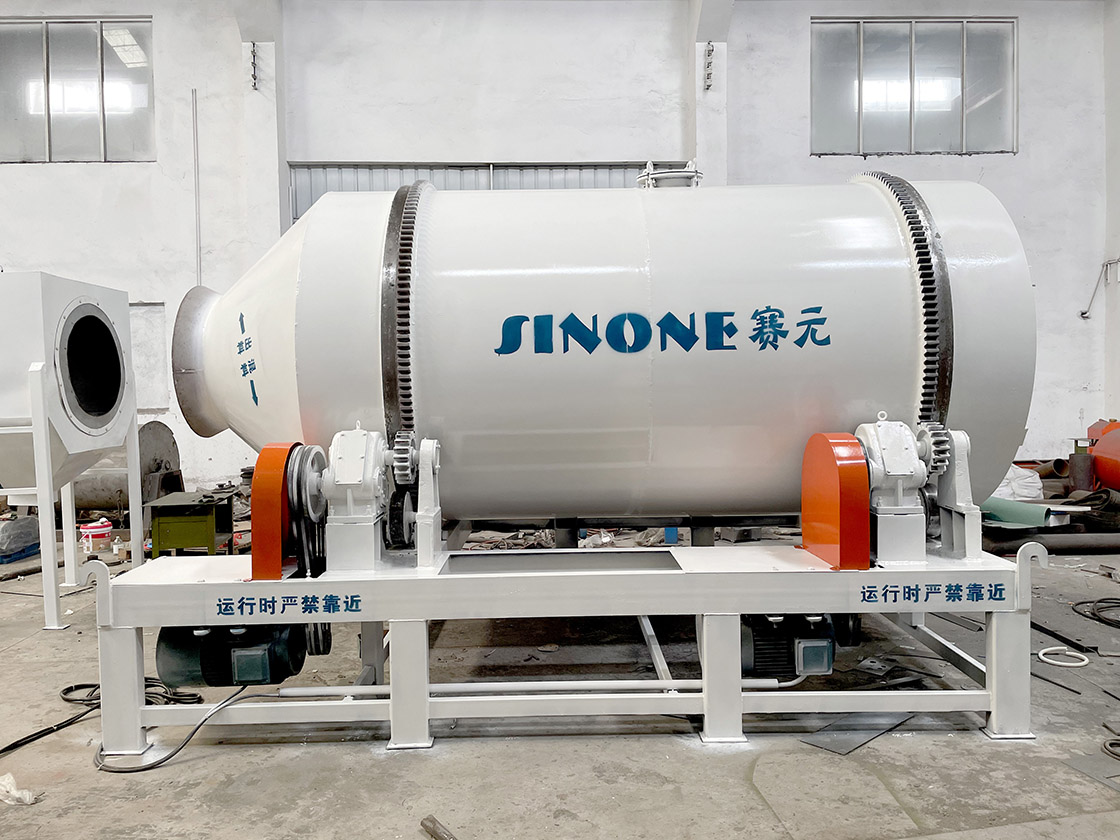

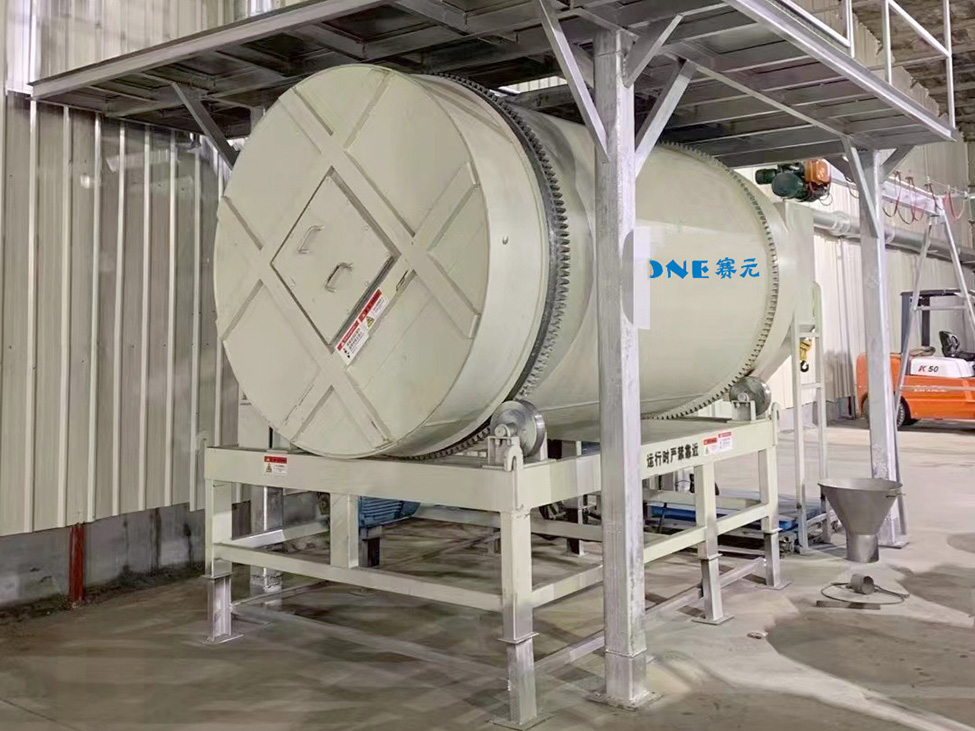

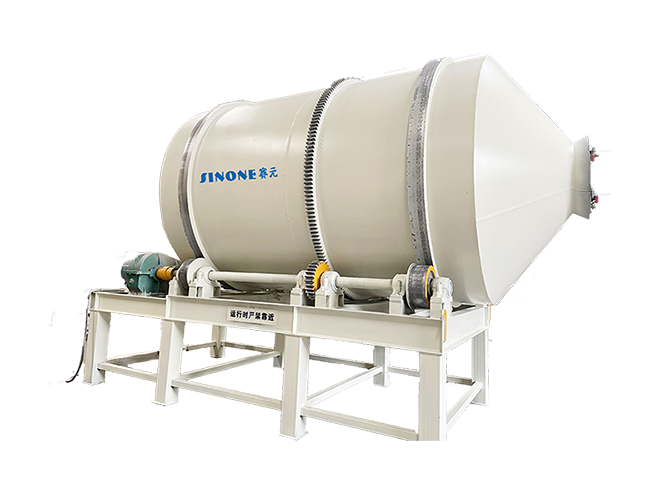

The mixing tank is designed for uniform blending of quartz sand, powder, resin, and auxiliary materials. With optimized blade geometry and controlled rotation speed, the tank ensures that all components are evenly distributed before entering the cloth system.
Mixing drum, drive motor, mixing blades, resin injection ports, control panel, discharge gate.
Raw materials and resins enter the tank via automatic or manual feeding. The blades rotate at controlled speeds to ensure thorough mixing without material segregation. Once the blend reaches the desired uniformity, it is discharged into the distribution system.
Model | SYHLG-20000 | SYHLG-30000 |
Mixing Weight(kg) | 20000 | 30000 |
Size（mm） | 5700×2700×3150 | 6400×2960×3500 |
Power（kW） | 37 | 44 |
Weight（kg） | 9500 | 12000 |
